Using Skypoint AI Insights

Overview

Skypoint AI Insights feature integrates Power BI’s reporting capabilities into the Skypoint platform, providing a seamless and secure analytics experience. Instance Admins and above can create custom Insights, each accessible through a customized unique web URL.

By organising multiple Power BI reports under a single Insight, this feature delivers a centralized and efficient way to manage and present analytics. It streamlines data access, enables informed decision-making, and enhances operational efficiency across teams.

How to configure and manage Insights on Skypoint AI Studio

User can create Insights on Skypoint AI studio by following the below steps:

A. To setup a connection

  1. Sign in to Skypoint AI Studio.
  2. Navigate to Dataflow and choose Connections.
  3. Click on Set up for Power Bi.

Alt text

  1. Fill in the required connection details and validate credentials.

Alt text

  1. Click the SAVE button to confirm the changes.
note

A configured connection can be used to set up multiple Insights.

B. To add new Insights

  1. In the left pane, go to Applications > Insights.

The Insights window appears.

Alt text

  1. Click on New Insights to create new insight.

The Add Insights window appears

Alt text

  1. Enter the name for the Insight to appear across the platform.
  2. Enter the Access endpoint(url).

To Add Power Bi Report:

  1. Select the Category of power bi connection from the dropdown menu.

  2. Report Name will be auto populated based on the category of connection.

  3. Enter power bi Workspace ID.

  4. Enter power bi Report ID.

  5. Click on Save to add the report.

    You can see the report in the Added Reports window.

note

Multiple reports can be added to an insight by instance admin.

  1. Click on the Add Report button to add more reports,Follow the same steps to add reports.

C. To edit existing Insights

Follow the steps below to change or edit the existing insights

  1. Select an Insight from the list to make changes.
  2. Click on Edit to edit the insight.

Alt text

  1. You can change the Name of existing Insight.
  2. Add the new report to the existing Insight.
  3. Delete the report by clicking the delete icon on the added report window.
ItemDescription
Report NameName of the Report
Bi ConnectionCategory of the Power Bi connection
Workspace IDThe workspace id of the power bi report
Report IDReport id of the power bi report
ActionRefers to the menu or control within the Insights where users can perform tasks such as edit or delete a report linked to an Insight
note

The access endpoint will be inactive and cannot be edited once set. Ensure the correct endpoint is configured during initial setup.

D. To delete existing Insights

Follow the steps below to delete the existing insights

  1. Select the insight which you want to delete.
  2. Click the Delete tab located at the top of the page.

Alt text

Confirmation page appears with the insight details

Alt text

  1. Click on the delete button to remove the insight.
note

Once an Insight is deleted, it is permanently removed and cannot be undone. Please proceed with caution.

E. To Activate Access Endpoint for an Insight

note

This step is applicable for adminstrator only

This process links your Insight application to a custom domain by configuring and verifying DNS details.

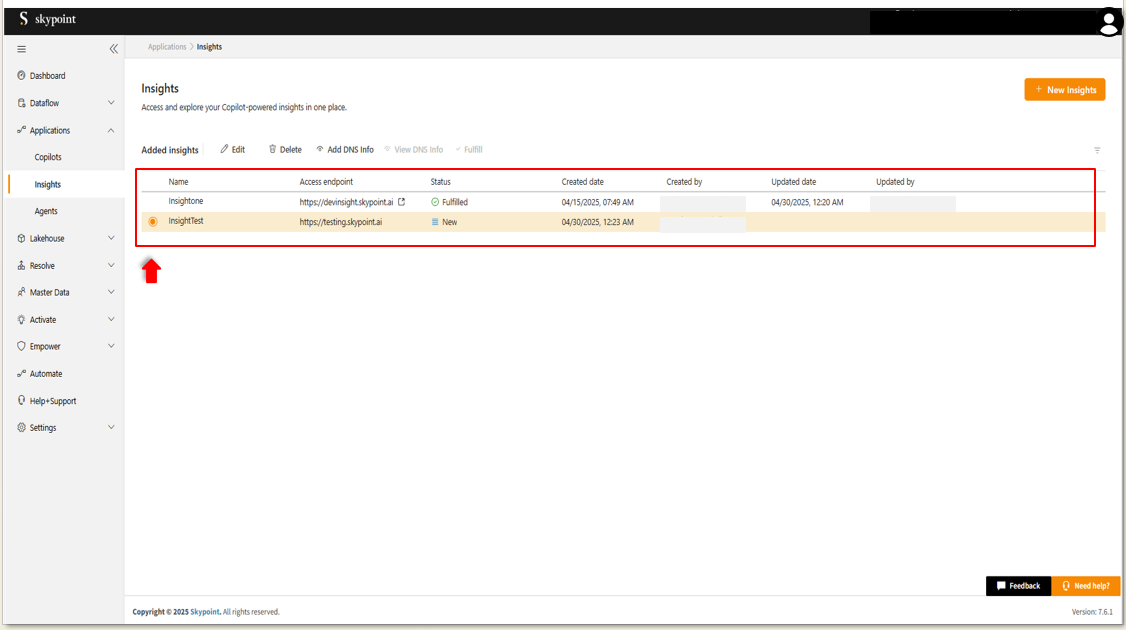

  1. Select the Insight from the list of Insights, select the newly added insight.

Alt text

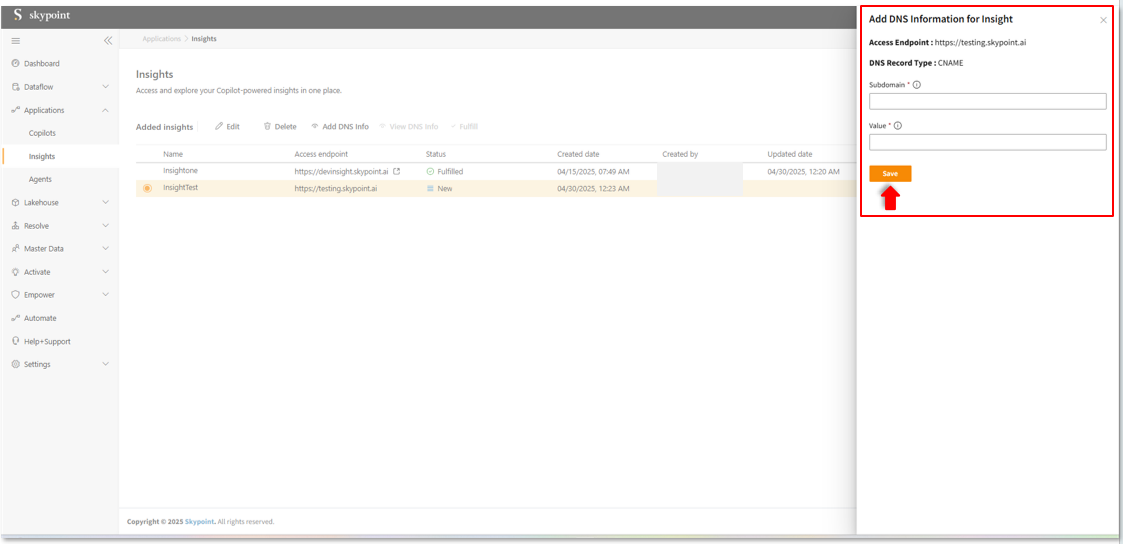

  1. Click on Add DNS Info located in the top tab to open the Add DNS Information form.

Alt text

  1. Enter Subdomain and Value in the provided space.
  2. Click on Save to apply changes.

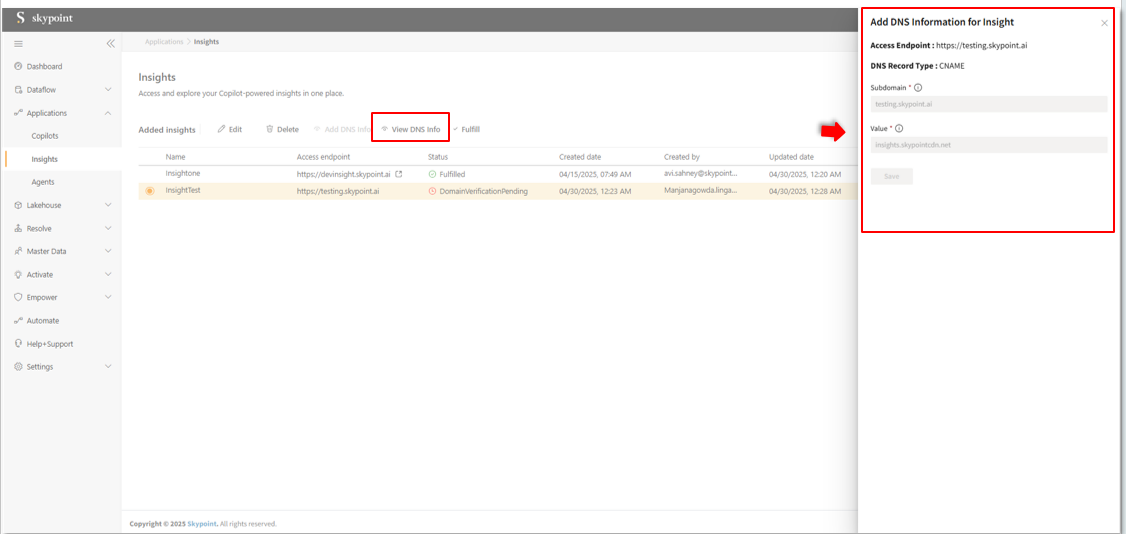

  3. Click on View DNS Info from the top tab to open and verify the DNS Information form.

Alt text

  1. Verify Subdomain and Value.

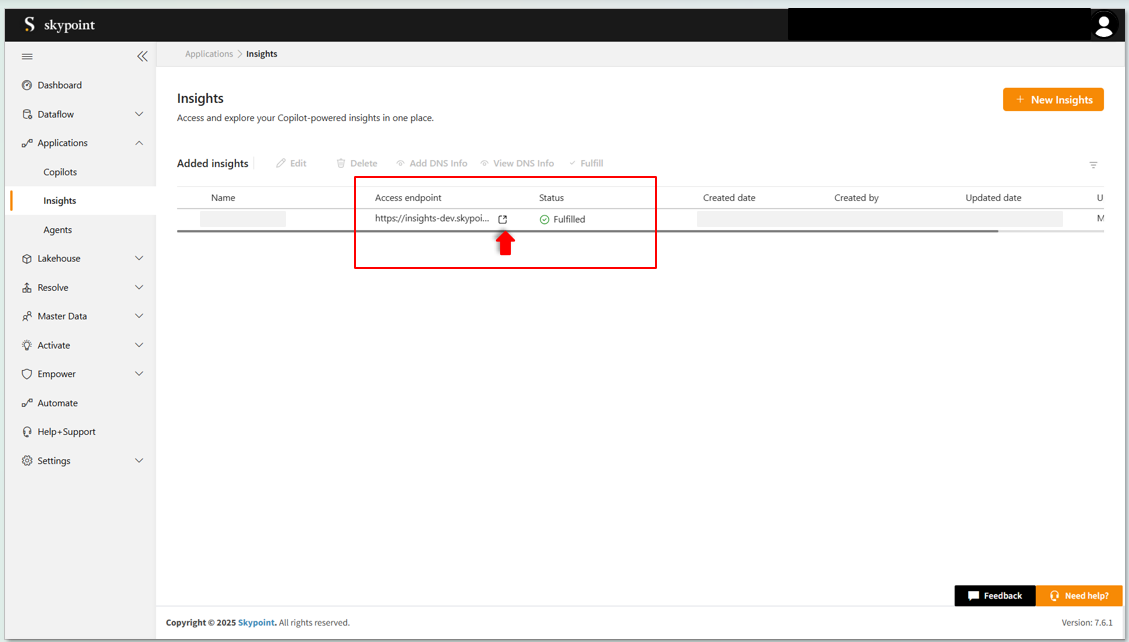

  2. Click the Fulfill button to finalize the DNS setup and activate the Access Endpoint.

Alt text

Once fulfilled, the Access Endpoint for the Insight application will be activated

How to access Skypoint AI Insights Applications?

Follow the steps below to access Insights and view the required reports through two different methods:

  • You can directly access the Insights application using the provided access endpoint (URL).
  • You can access the Insights application through Studio under the Applications module. Simply click on the Insight access point (URL) to be redirected to the Insights application.

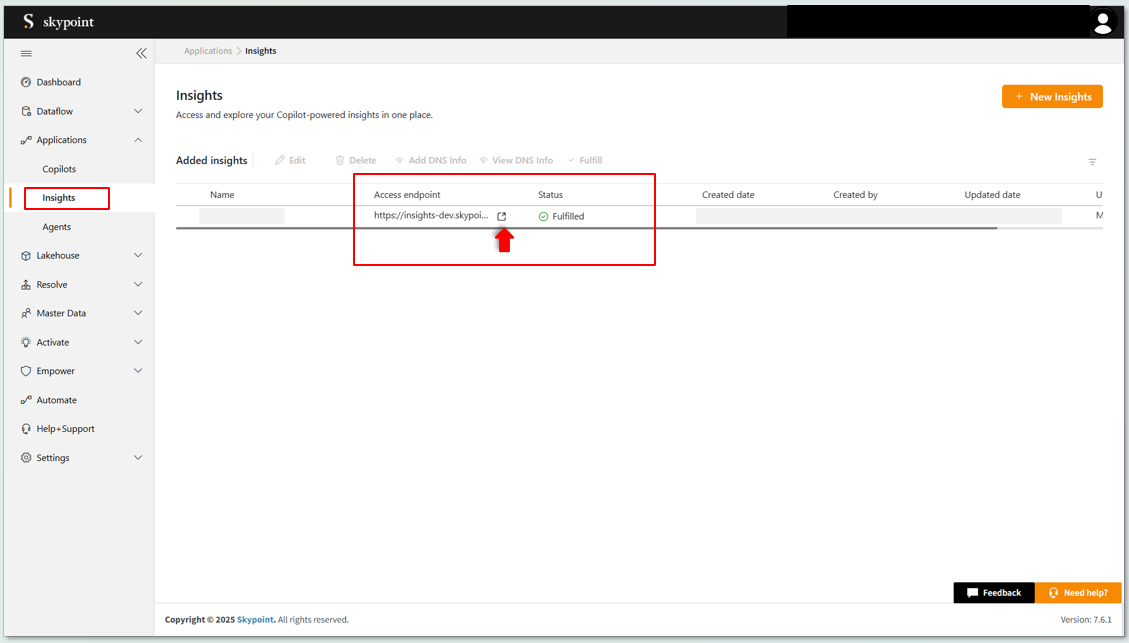

  1. In the left pane, go to Applications > Insights,the Insights window appears.

Alt text

  1. Click on the Access endpoint (URL) provided to navigate to the Insight application.

How to access reports in Skypoint AI Insight Applications?

A. To Navigate and View Reports

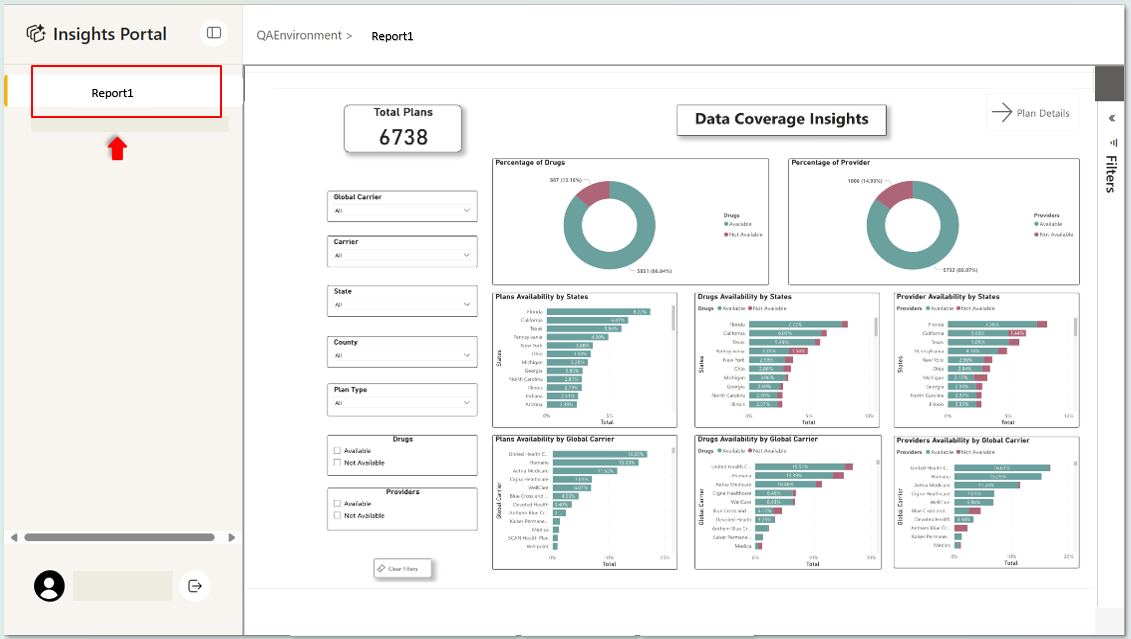

  1. In the left panel, you can see a list of available reports.
  2. Click on the report you need to open.

Alt text

  1. You can switch to another report by clicking on the reports listed in the left panel.

B. To Interact with Reports

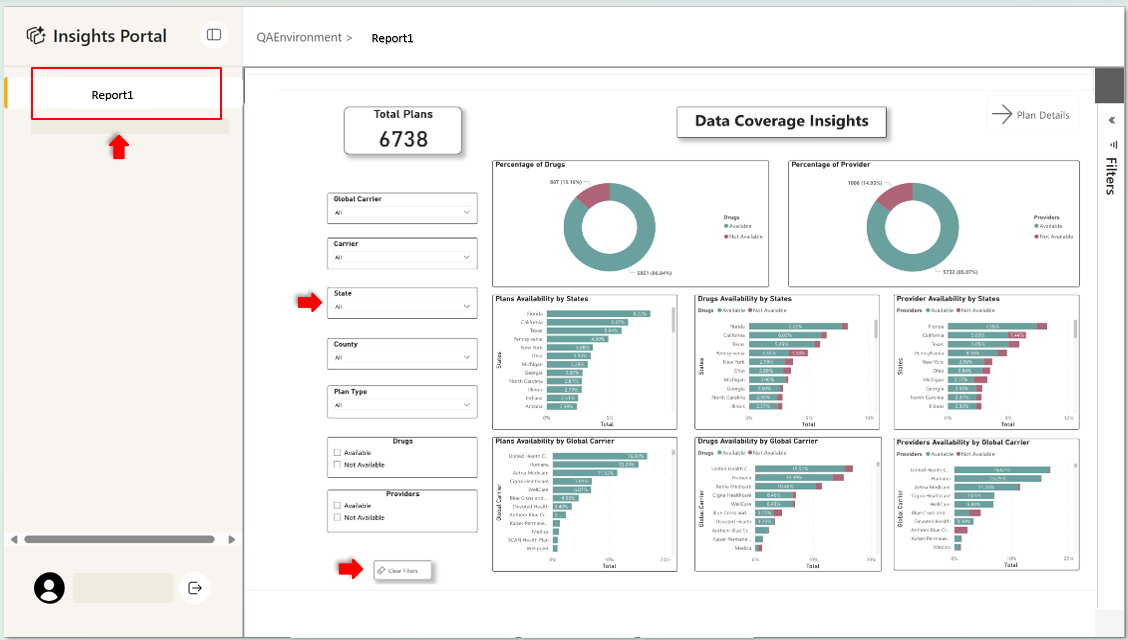

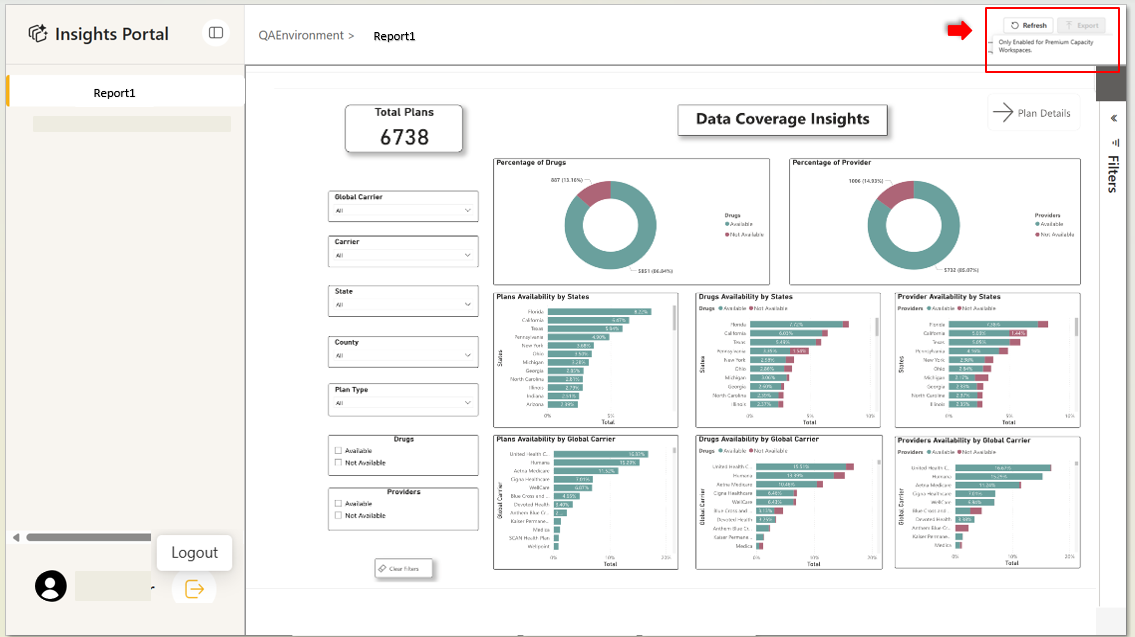

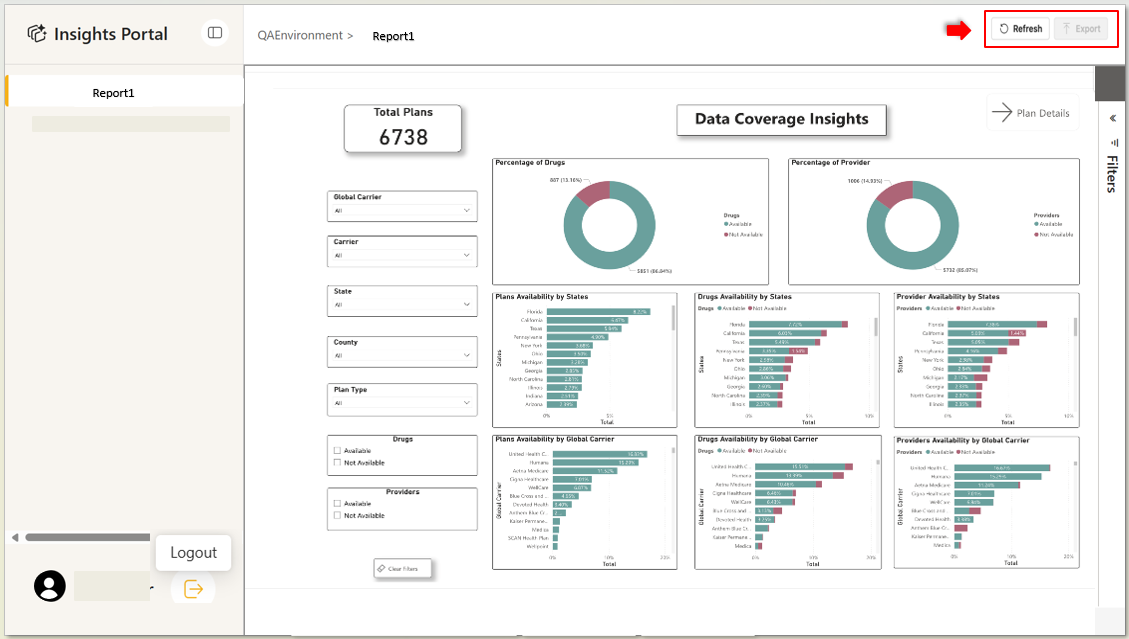

  1. You can interact with the report by applying filters based on your needs.

Alt text

  1. Use the available options to explore and analyze specific data within the report.

C. To logout from Insight Portal

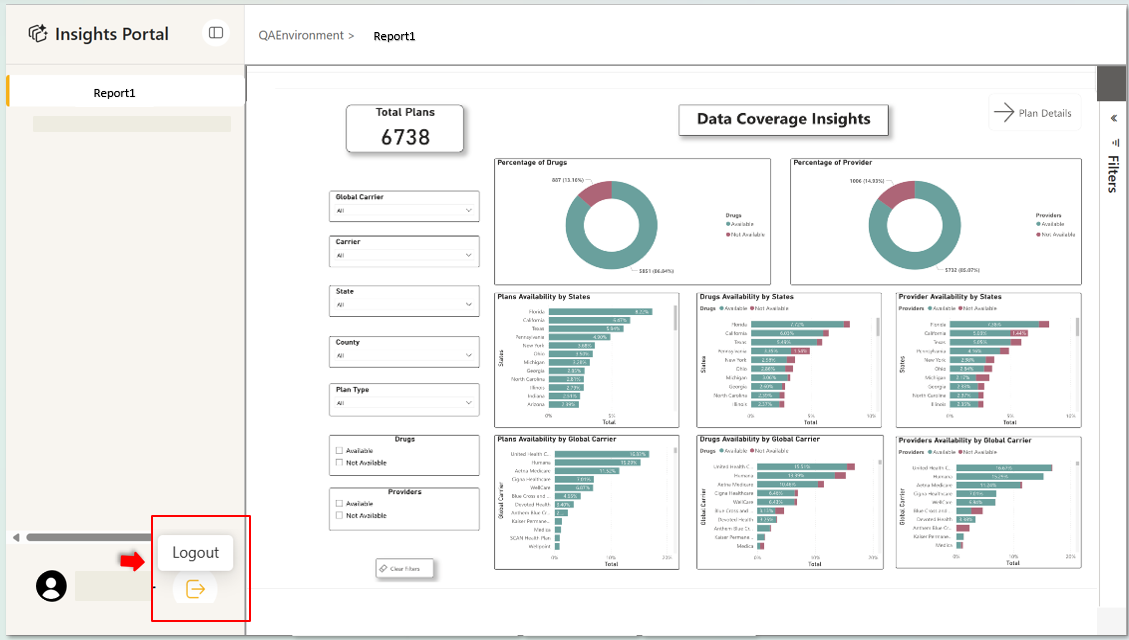

  1. From the bottom in the left side panel, click on your profile icon.

Alt text

  1. Click on the Log out button to log off from the portal.
