Connecting Fivetran and Databricks on skyStudioP

​

Overview

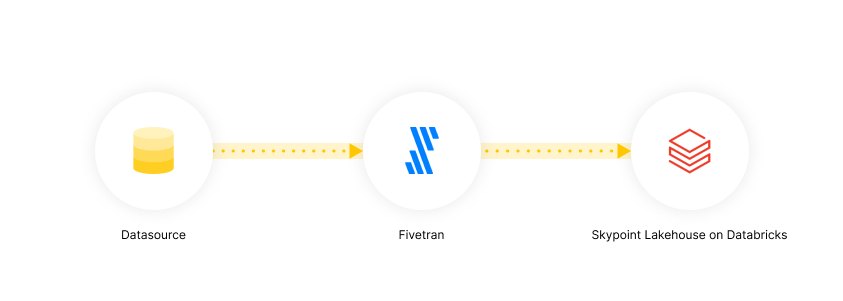

Skypoint provides built-in connectors and the flexibility to integrate with external tools like Fivetran, dbt, Power BI, and Tableau to seamlessly import data from user databases. With Fivetran, users can securely transfer data from multiple sources to Databricks on skyStudioP within a robust cloud network. This guide will walk you through the steps to set up your data pipeline. Find the architectural outline of the data pipeline as follows:

​

Prerequisite

• You have an active account with Fivetran and skyStudioP & credentials to access them.

​

Setup Guide to Connect Fivetran and Databricks on skyStudioP

The setup involves two key steps:

• Integrating your Data Source with Fivetran
• Connect Fivetran to Databricks on skyStudioP

​

Step 1: Integrate your Data Source with Fivetran

Fivetran offers a comprehensive range of connectors to integrate with your databases.

1. Follow the Fivetran setup guide to configure the connectors, required to set up connection with your data source.
2. Prepare the following prerequisites for your source and destination to streamline the setup:
   • Valid database credentials
   • An active Fivetran account
   • skyStudio account with access to the Studio.

​

Step 2: Connect Fivetran to Databricks on skyStudioP

​

Actions on skyStudio Studio

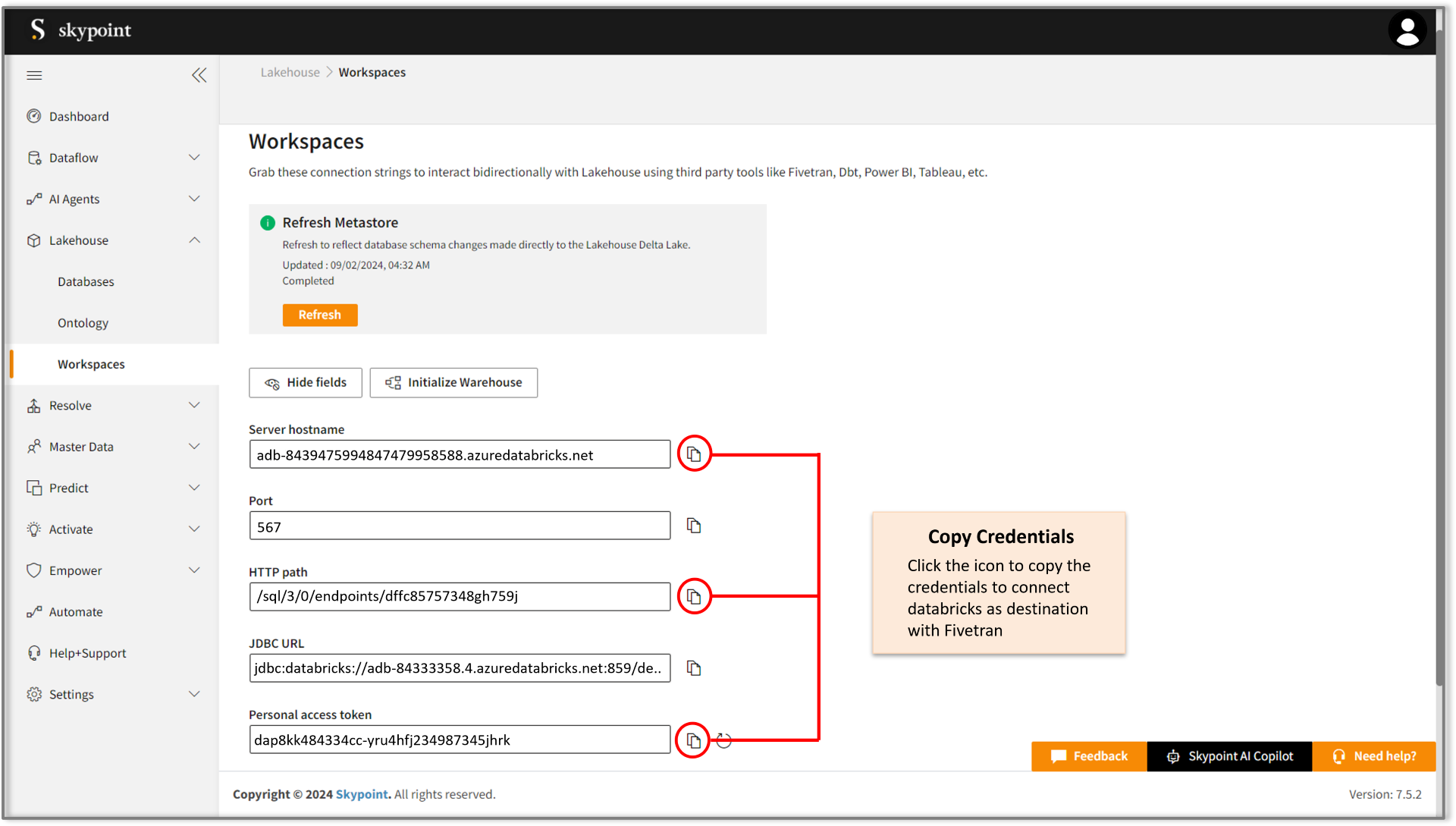

• Log in to your skyStudio Studio account.

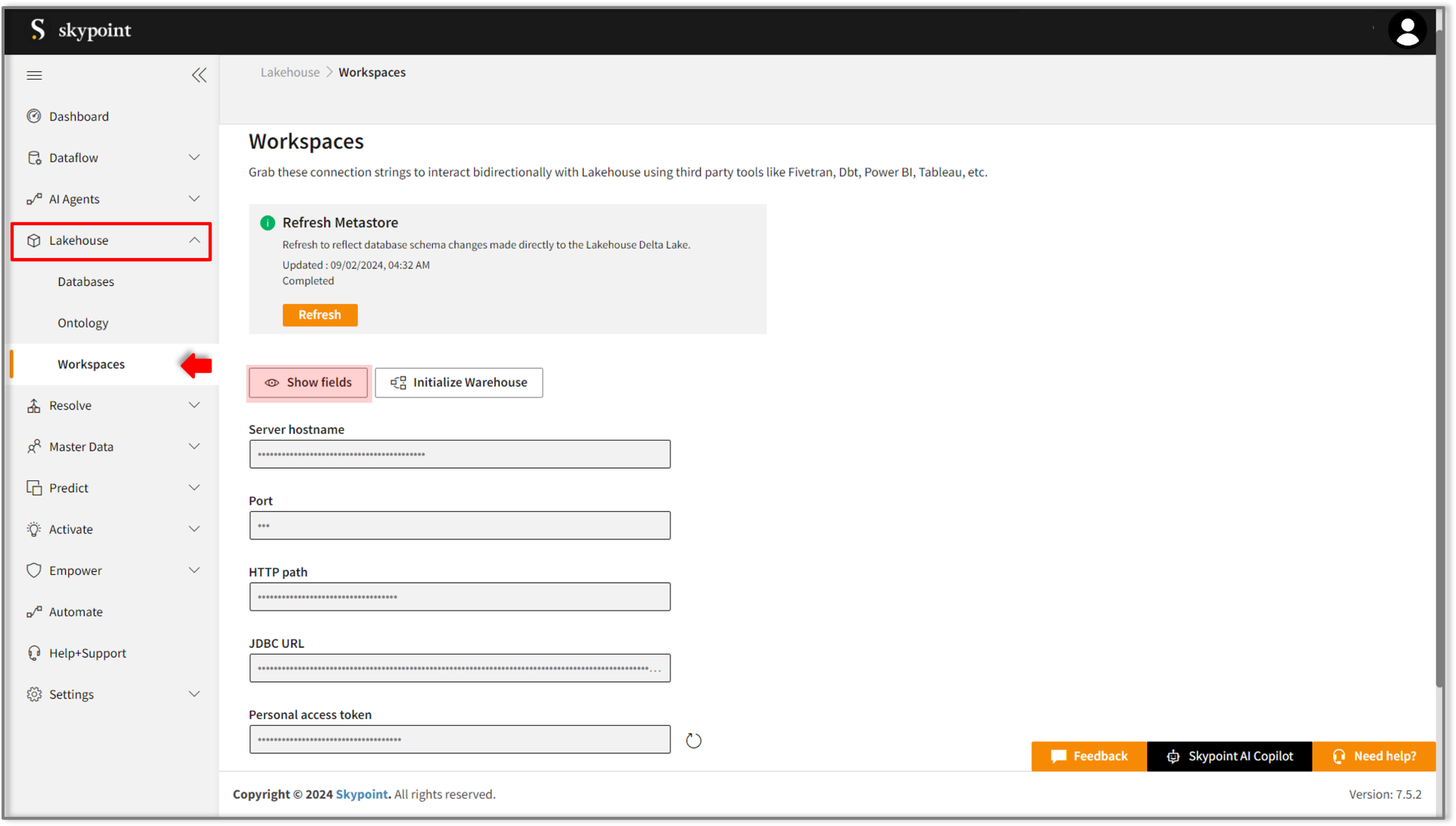

• Go to Lakehouse > Workspaces.
• Click the Show Fields button to display connection strings.

• Copy the following credentials:
  • Server Hostname
  • HTTP Path
  • Personal Access Token

​

Actions on Fivetran

• Log in to your Fivetran account.

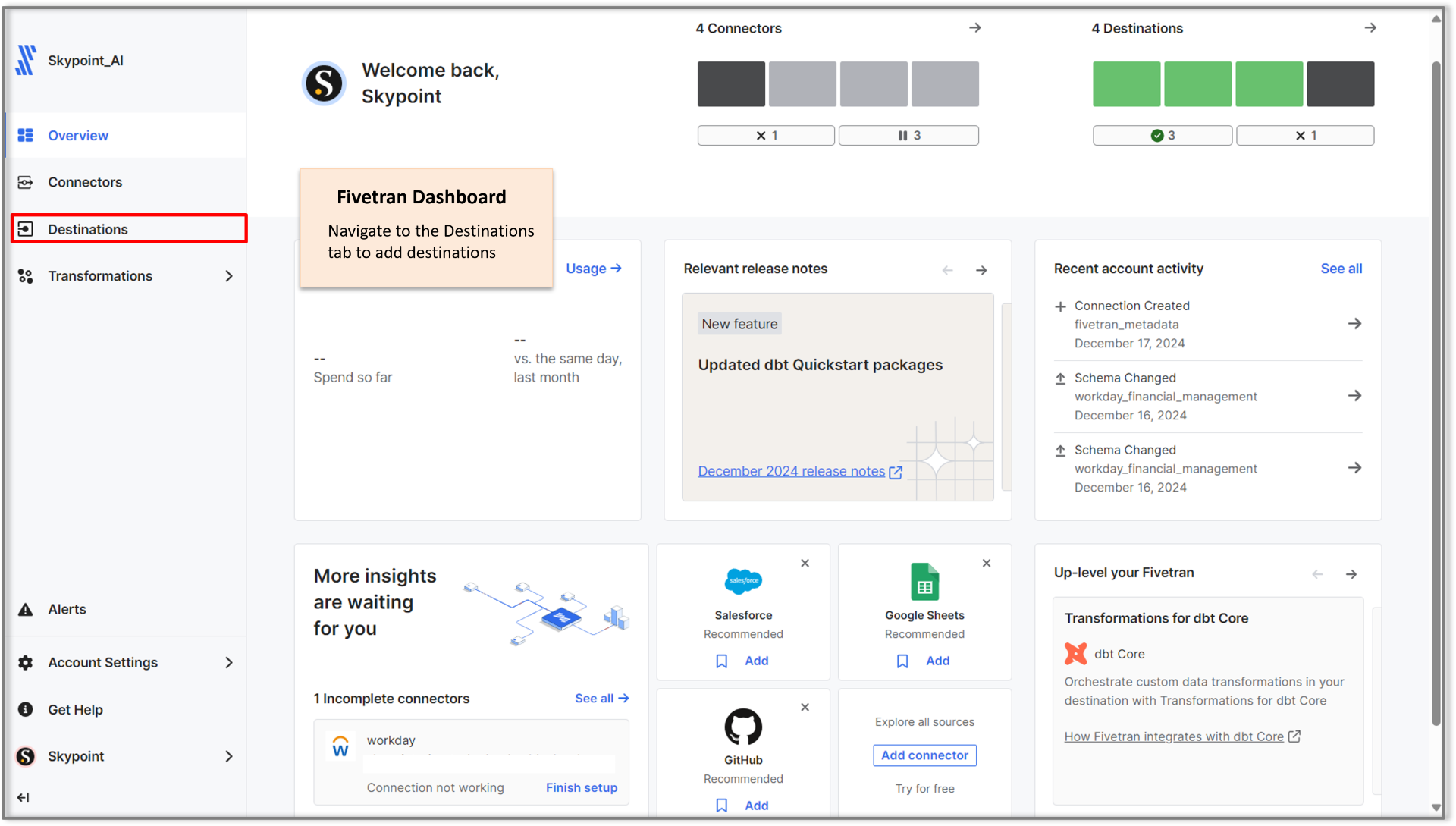

• From the left panel, navigate to Destinations.

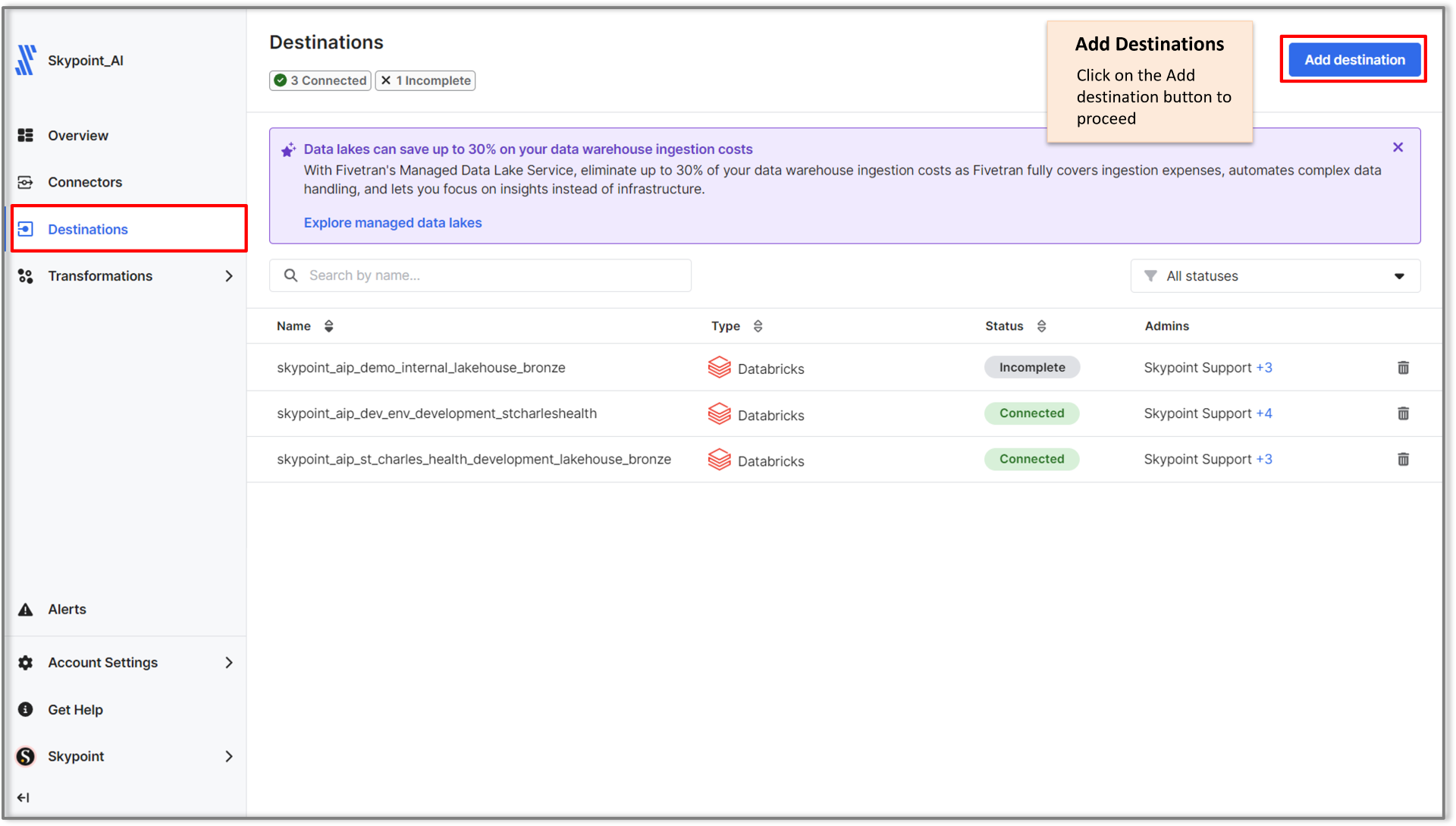

• Click Add Destination.

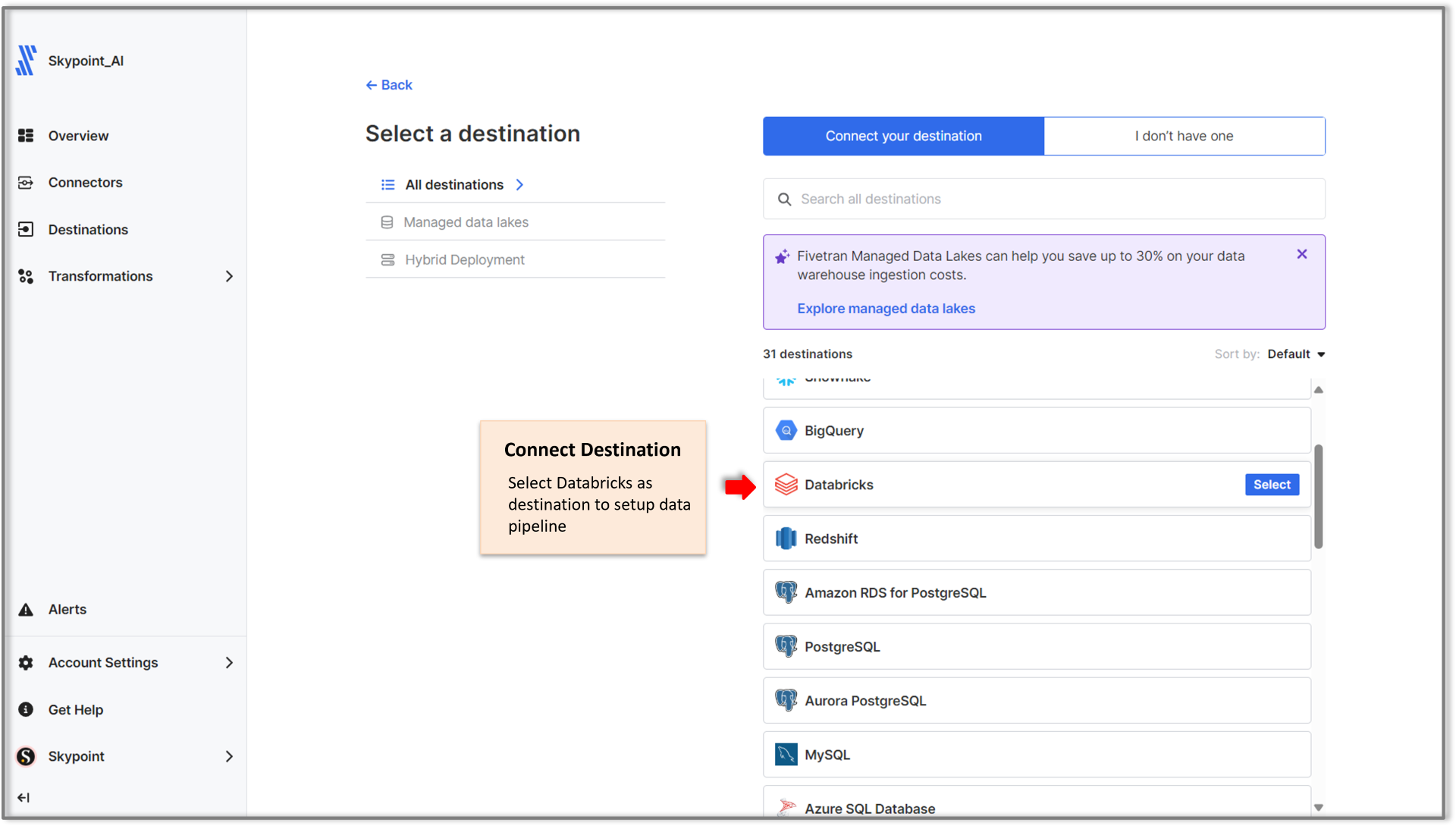

• Select Databricks as your destination.

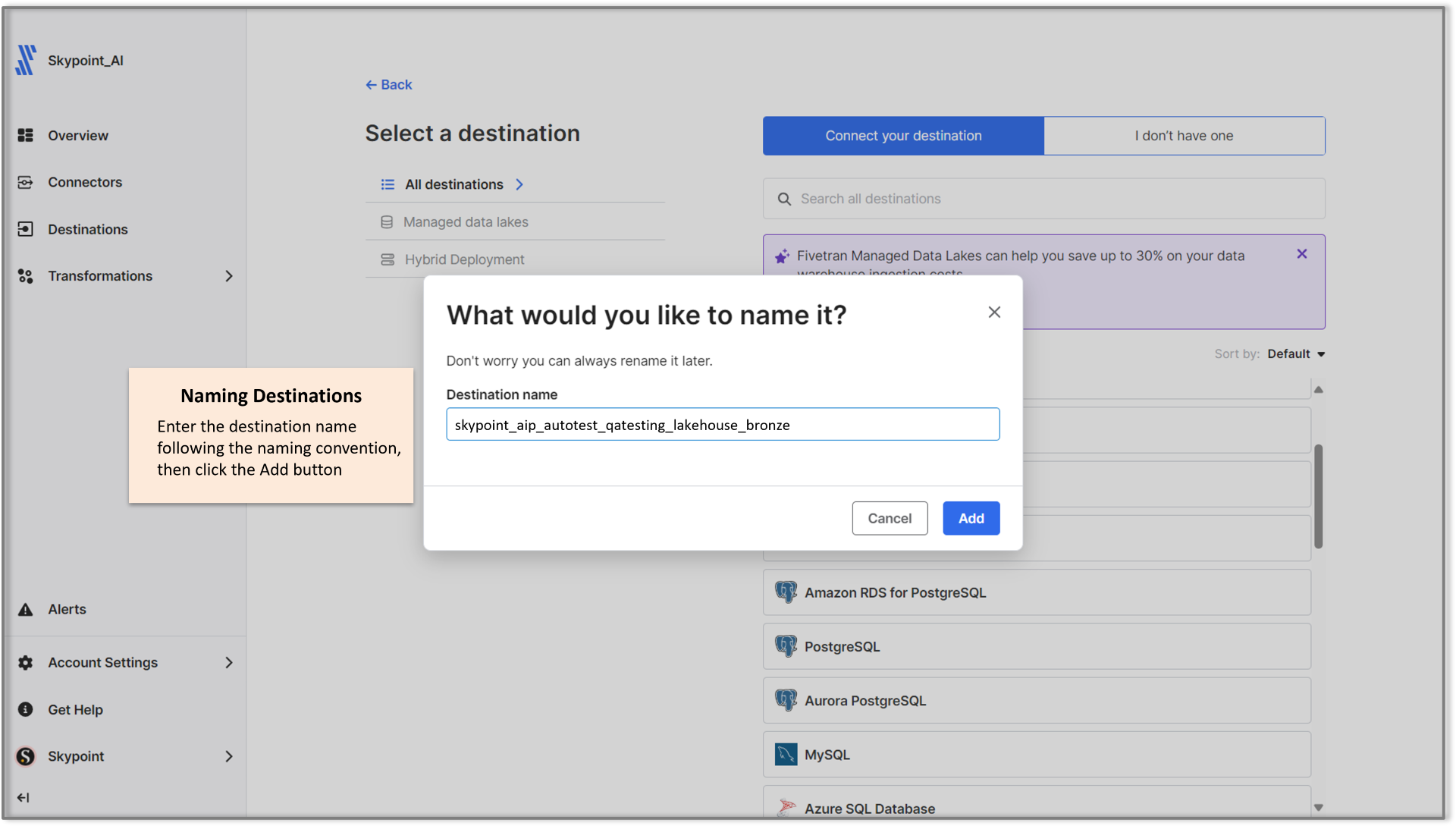

• Name the destination by following the naming convention for the destination as follows:

skypoint_aip_<Tenant_name>__<Instance_name>_lakehouse_bronze Components:

• skypoint_aip: Identifies the skyStudioP platform.
• <Tenant_name>: Placeholder for the tenant’s name.
• <Instance_name>: Placeholder for the instance name.
• lakehouse_bronze: Specifies the Bronze layer in the Lakehouse architecture.

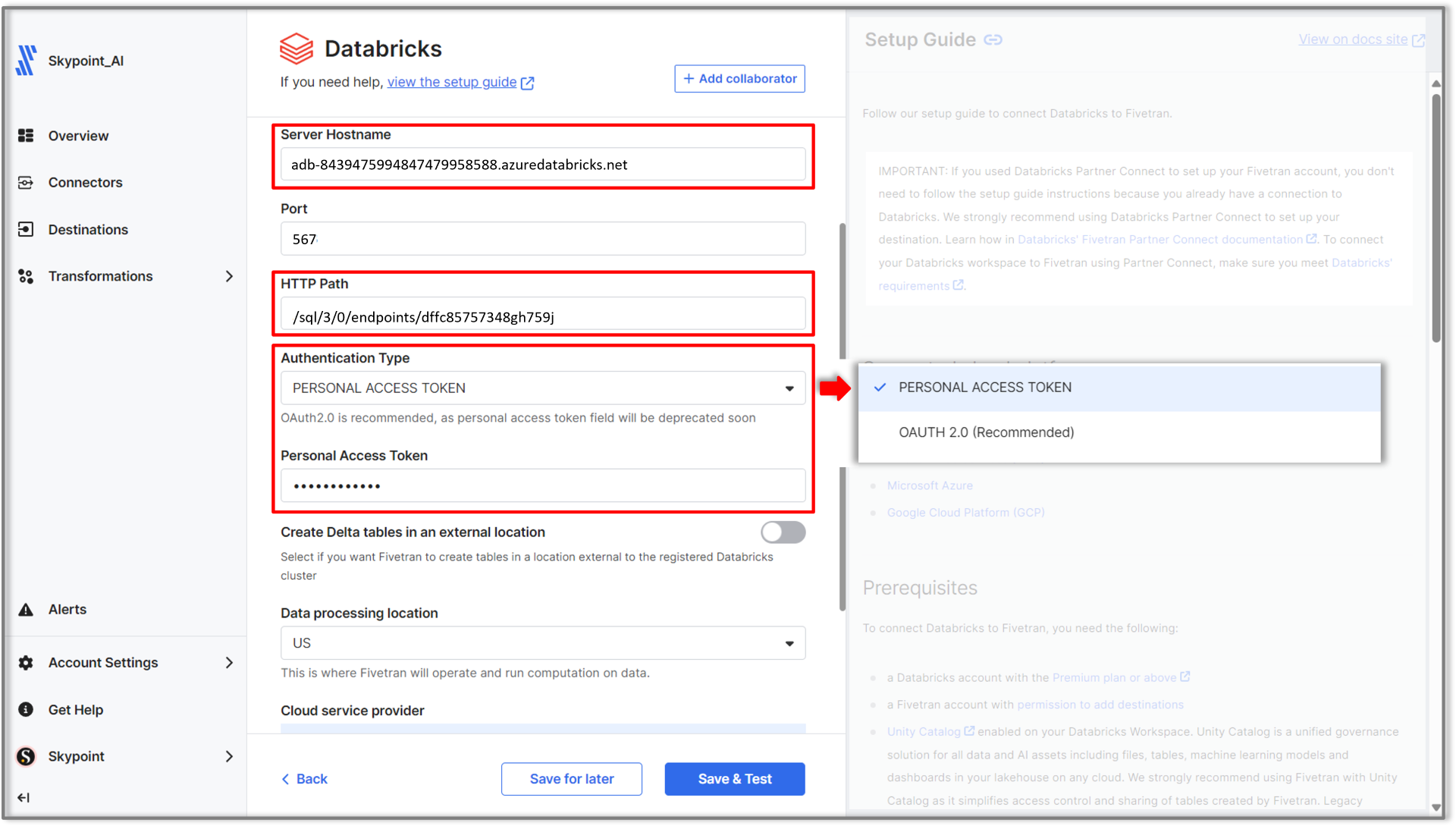

• Key in the required credentials by copying from skyStudio Studio.

• Under Authentication Type, select Personal Access Token from the dropdown menu.
• Key in the personal access token in the field below.
• Click Save & Test to verify the connection.

​

Congratulations! You’ve successfully connected Fivetran with Databricks on skyStudioP. Your data pipeline is ready to sync securely!

​

Post-Setup Verification

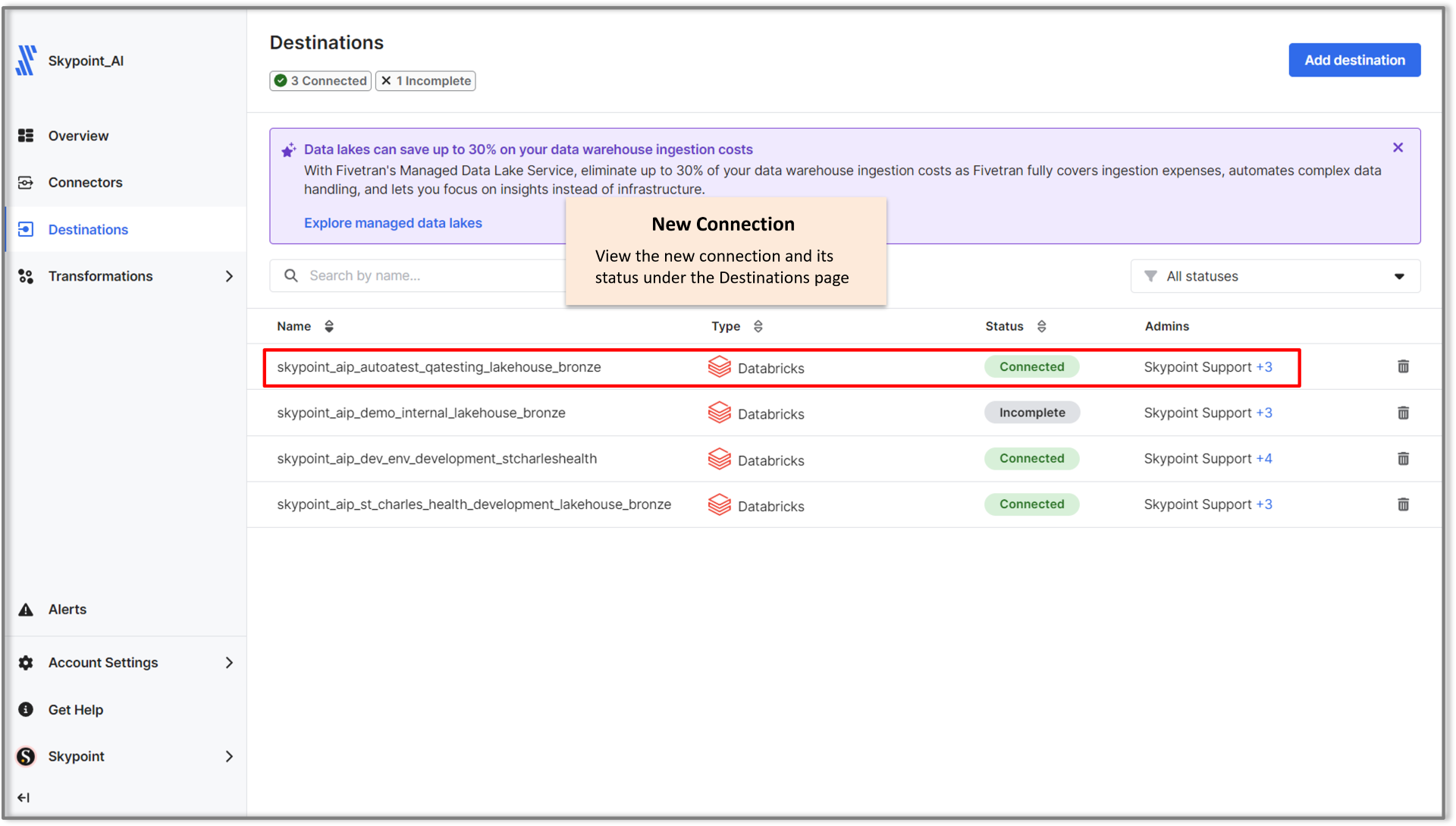

• The new connection will appear on the Destinations page.

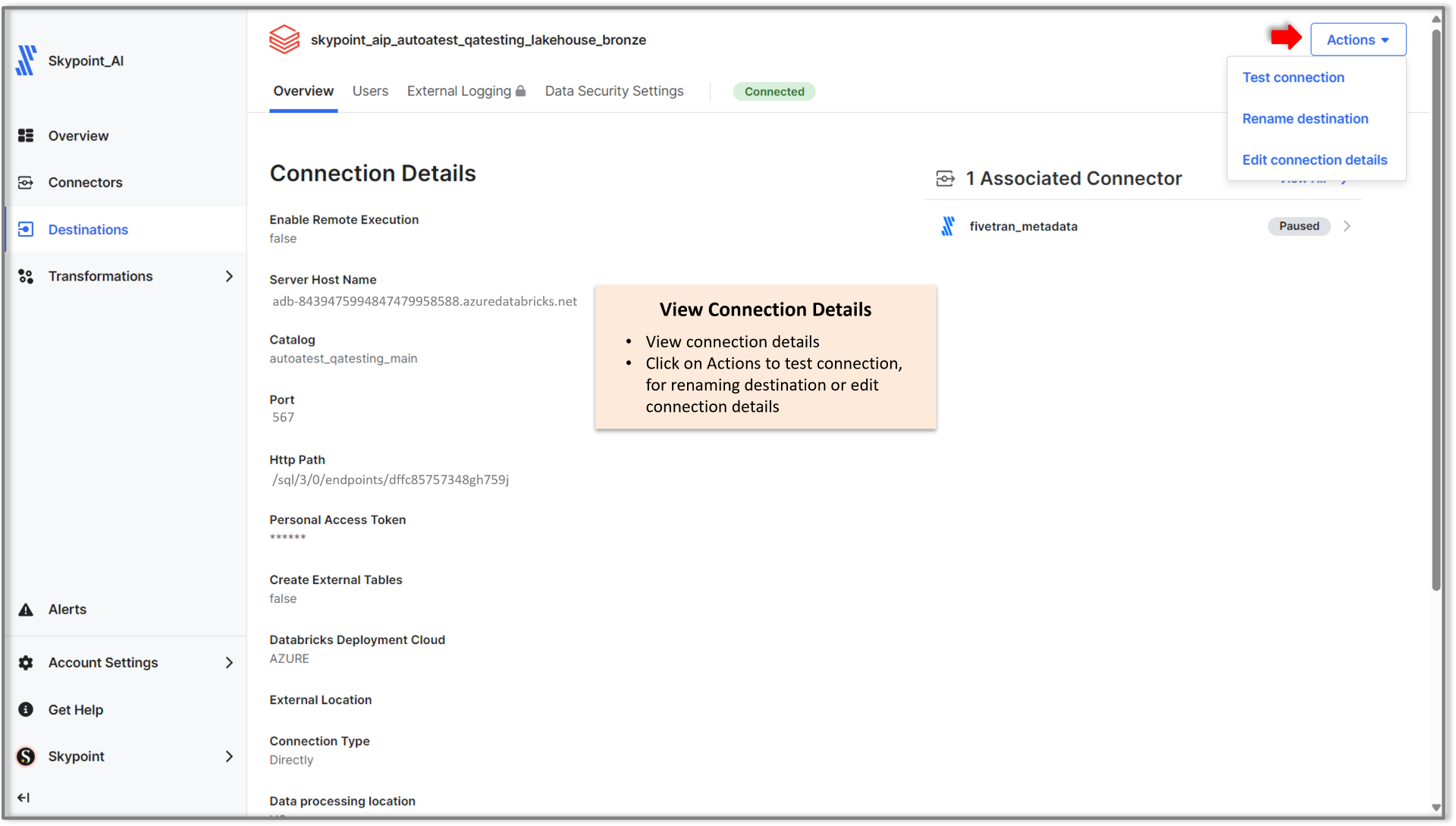

• Click on the connection to view its details.
• Use the Actions menu to:
  • Test the connection
  • Rename the destination
  • Edit connection details

​

Next step

After completing the data import, start the Master Data Management (MDM) - Stitch process to develop a unified view of your customers.
